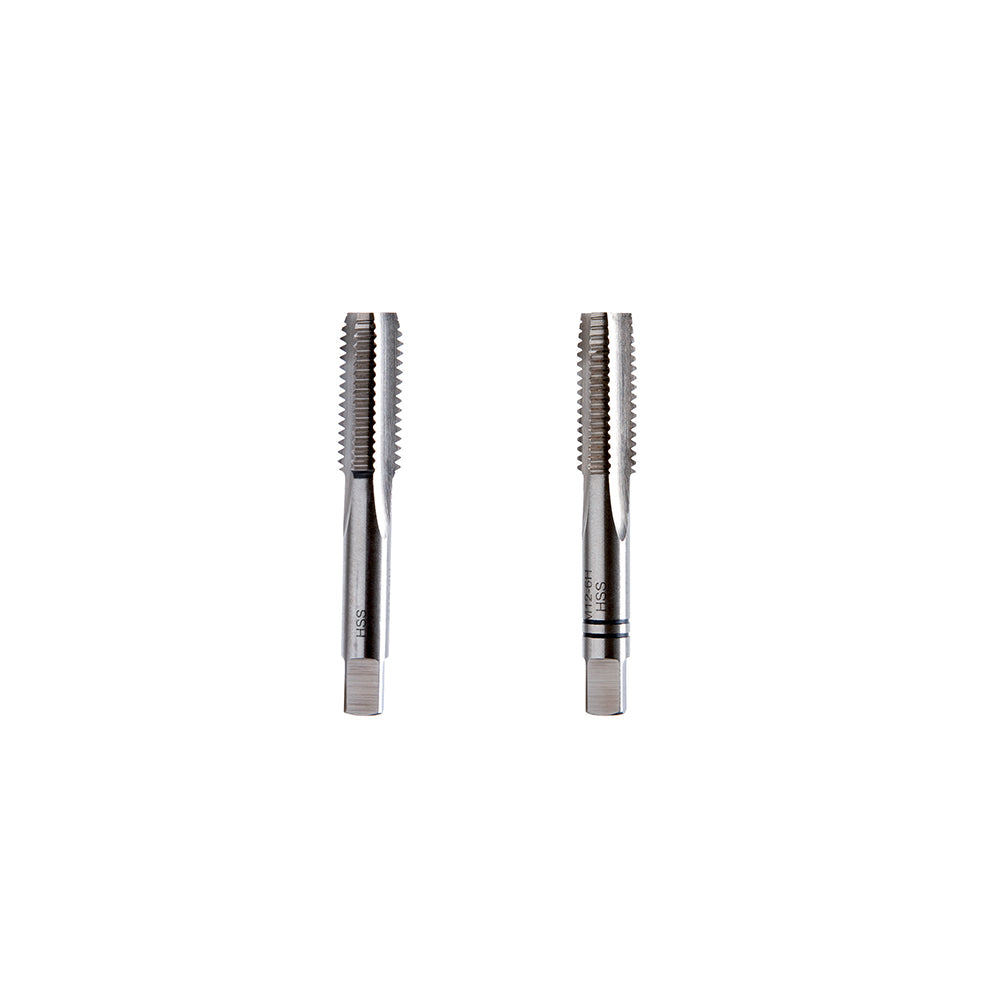

Serie 2 Maschi A Mano In Acciaio Hss, FG 72/M

- Passo fine

- Filettatura metrica

- HRC: 63-66

- DIN 2181

Scheda Tecnica

CODICE PRODOTTO	L/mm	L1/mm	Attacco mm	?/mm	Adatto per
FG 72/M6x0,75	50	19	6.0	6x0.75
FG 72/M7X0,75	50	19	6.0	7x0.75
FG 72/M8X0,75	56	22	6.0	8x0.75
FG 72/M8X1	56	22	6.0	8x1	FG 182/S16
FG 72/M9X1	63	22	7.0	9x1
FG 72/M10X0,75	70	24	7.0	10x0.75
FG 72/M10x1	70	24	7.0	10x1	FG 182/S16
FG 72/M10X1,25	70	24	7.0	10x1.25
FG 72/M11X1	70	24	8.0	11x1
FG 72/M12X1	75	29	9.0	12x1
FG 72/M12X1,25	75	29	9.0	12x1.25
FG 72/M12X1,5	75	29	9.0	12x1.5
FG 72/M13X1,5	75	29	9.0	13x1.5
FG 72/M14X1	80	30	11.0	14x1
FG 72/M14X1,25	80	30	11.0	14x1.25
FG 72/M14X1,5	80	30	11.0	14x1.5
FG 72/M15X1,5	80	32	12.0	15x1.5
FG 72/M16X1	80	32	12.0	16x1
FG 72/M16x1,5	80	40	12.0	16x1.5
FG 72/M18X1,5	95	40	14.0	18x1.5
FG 72/M18X2	95	40	14.0	18x2
FG 72/M20X1,25	95	40	16.0	20x1.25
FG 72/M20X1,5	95	40	16.0	20x1.5
FG 72/M20X2	95	40	16.0	20x2
FG 72/M22X1,5	100	40	18.0	22x1.5
FG 72/M24X1	110	50	18.0	24x1
FG 72/M24X1,5	110	50	18.0	24x1.5
FG 72/M24X2	110	50	18.0	24x2
